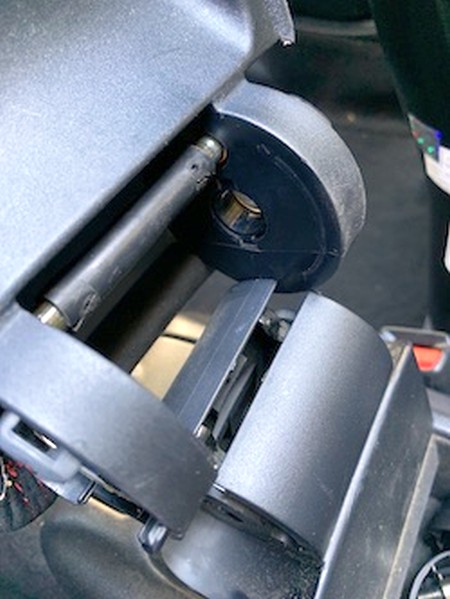

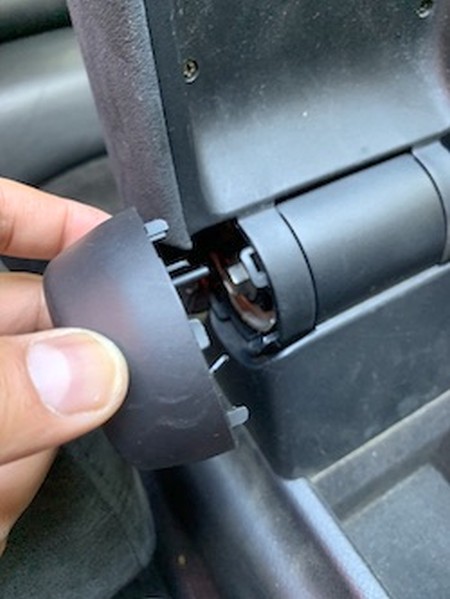

1. Pull off end caps. They are labeled left and right.

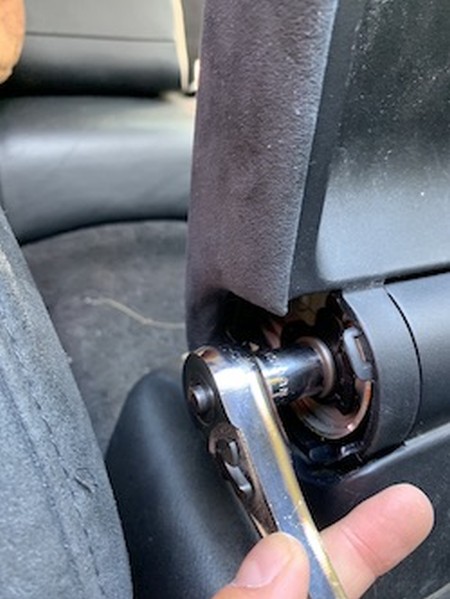

2. Remove the 2 hex bolts.

3. Remove armrest assembly from vehicle.

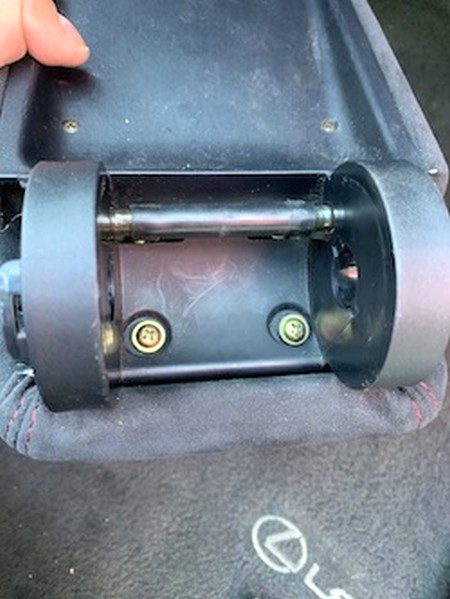

4. Remove the 2 screws at armrest swivel.

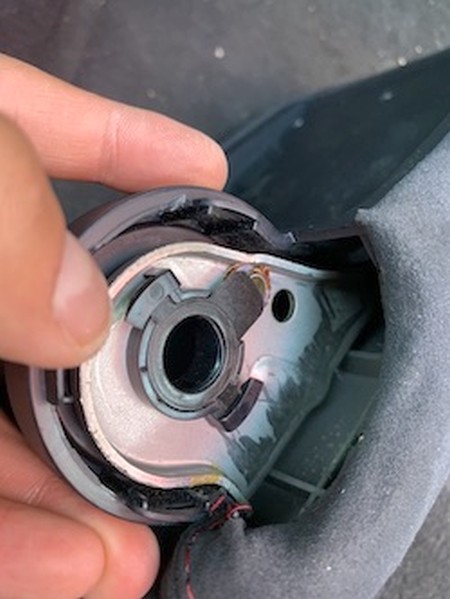

5. Remove plastic bushings.

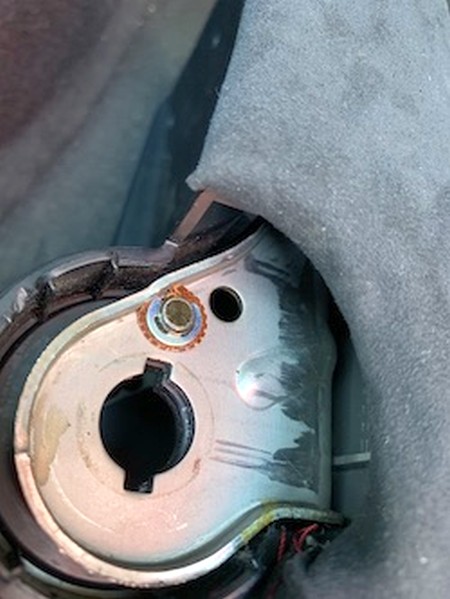

6. Remove the C clip.

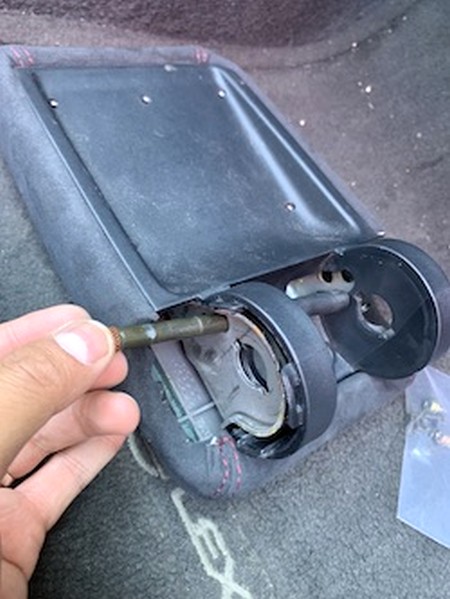

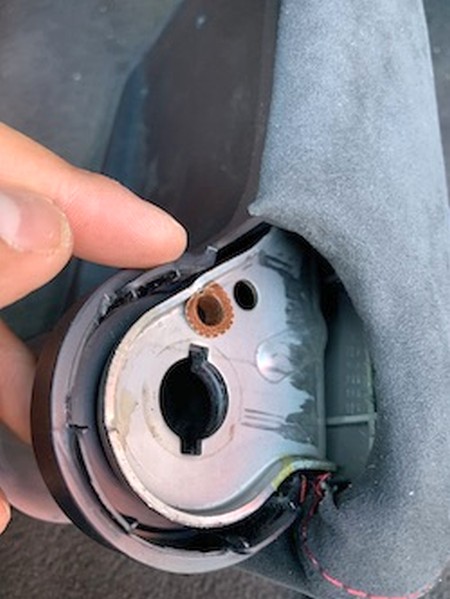

7. Remove metal stop pin with rubber sleeve. Remove brown bushings from outboard holes as shown.

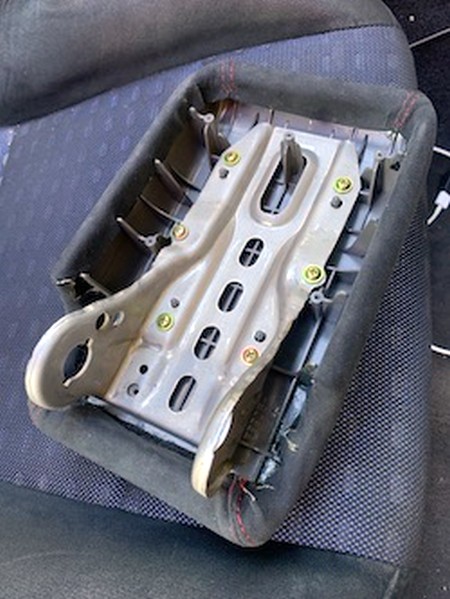

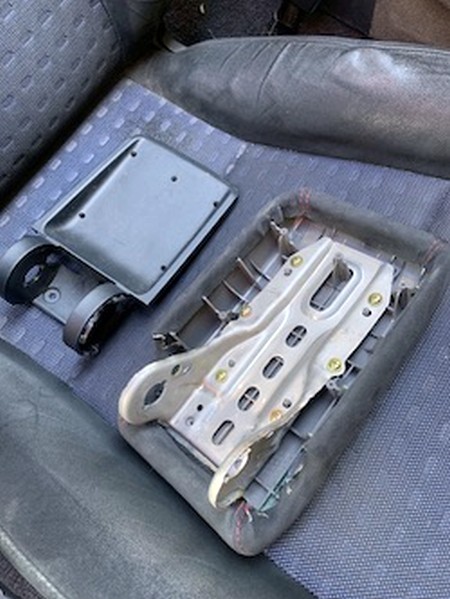

8. Unscrew the final 5 screws to separate the two halves.

9. Glue the armrest cover over the factory cover. Here's a sample guide that can help with particular steps of this task, and how to properly apply glue and trim edges.

10. Reinstall everything in reverse order of removal. While inserting black plastic bushings ensure the flat protrusion is orientated as shown in picture on step 5 above (should be covering pin).

CONGRATULATIONS - YOU HAVE SUCCESSFULLY INSTALLED YOUR NEW ARMREST COVER!

Useful tip

You have installed a product made out of genuine leather. As you know, to maintain a leather product in good condition, you should take care of it. We suggest occasionally (every 4-6 week for example) applying some leather conditioner/UV protector to keep your leather from drying up in the sun and cracking.

Redline Automotive Accessories Corp. will not be held liable for any labor, incidental or consequential damages of any kind. Proceed at your own risk.
